JSAW500/1000 90mm Ultra-Slim Wall-Mounted All-in-One ESS
- 90mm Ultra-Slim Wall-Mounted Design
- 500W / 1000W Built-In Inverter
- 1004.8Wh / 2009.6Wh LiFePO₄ Battery
- Built-In MPPT Solar Charging
- Integrated Battery + Inverter System
Ideal Applications
- Residential Backup Power · Apartment Energy Storage · Solar Energy Storage
B2B Support
- OEM / ODM Support · Configuration Options · Project-Based Supply

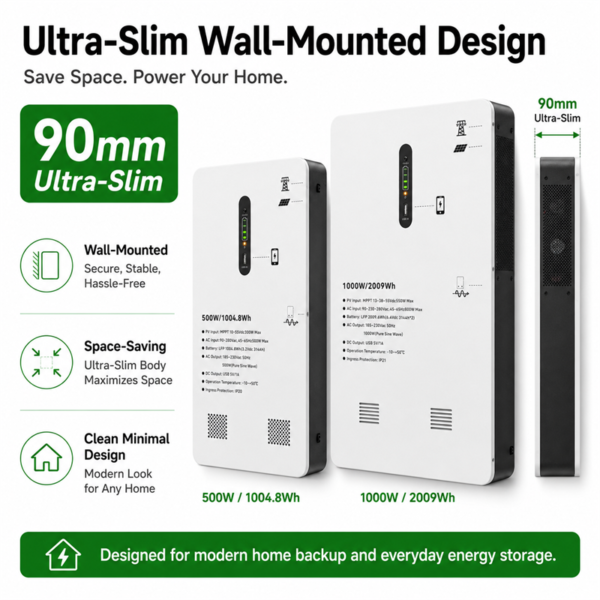

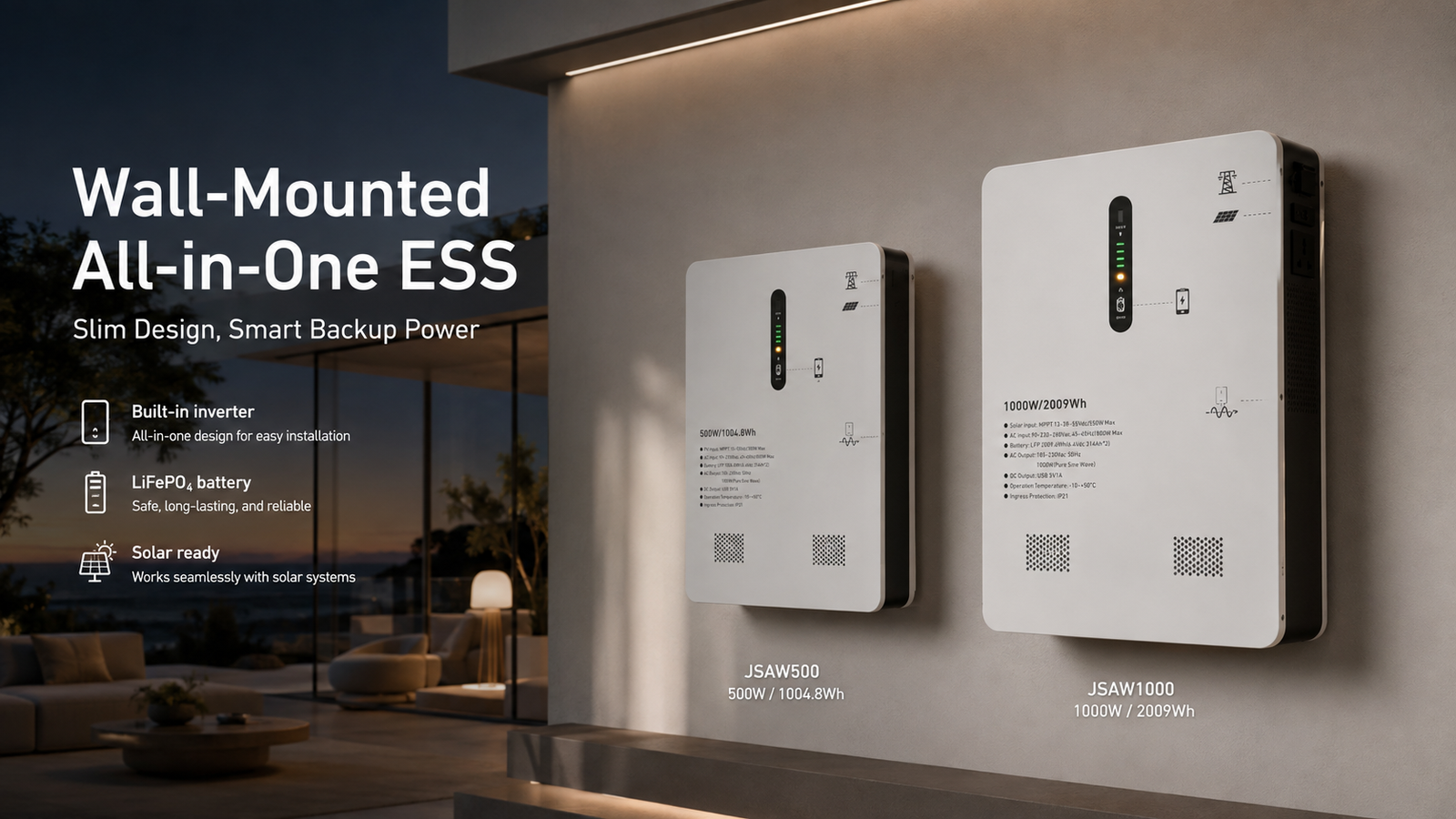

90mm Ultra-Slim Wall-Mounted All-in-One ESS
Ultra-Slim Energy Storage for Modern Homes
The 90mm ultra slim wall-mounted all-in-one ESS integrates battery storage, inverter and solar charging into one space-saving system. Its wall-mounted design helps reduce floor space while providing reliable backup power for apartments, villas and modern residential projects.

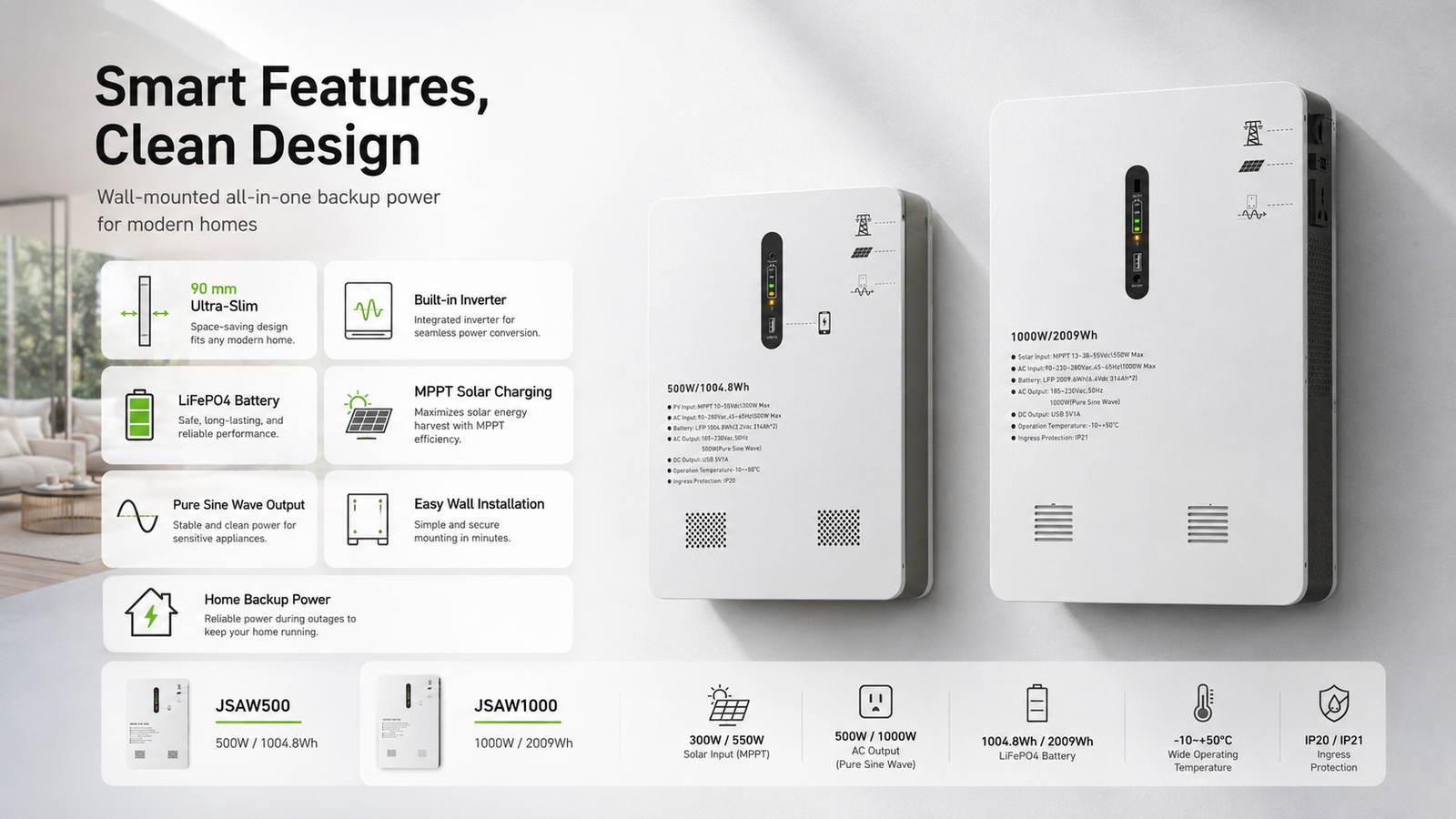

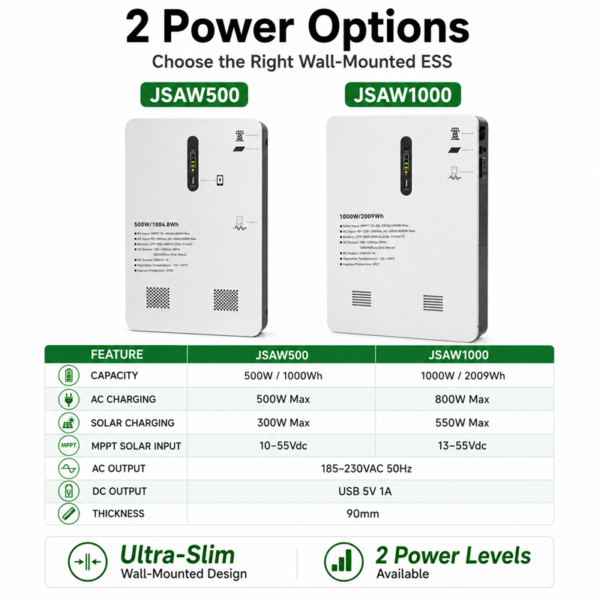

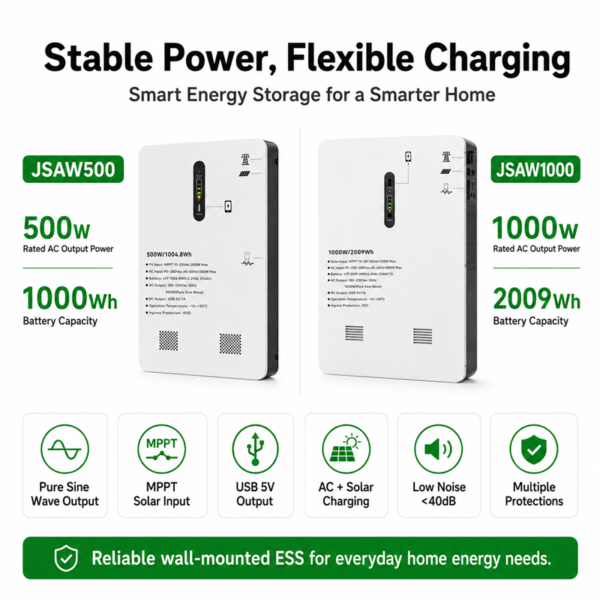

Two Configurations for Different Power Needs
Choose between 500W + 1004.8Wh and 1000W + 2009.6Wh configurations to match different residential backup requirements. Both models feature LiFePO₄ battery technology, pure sine wave output and built-in MPPT solar charging.

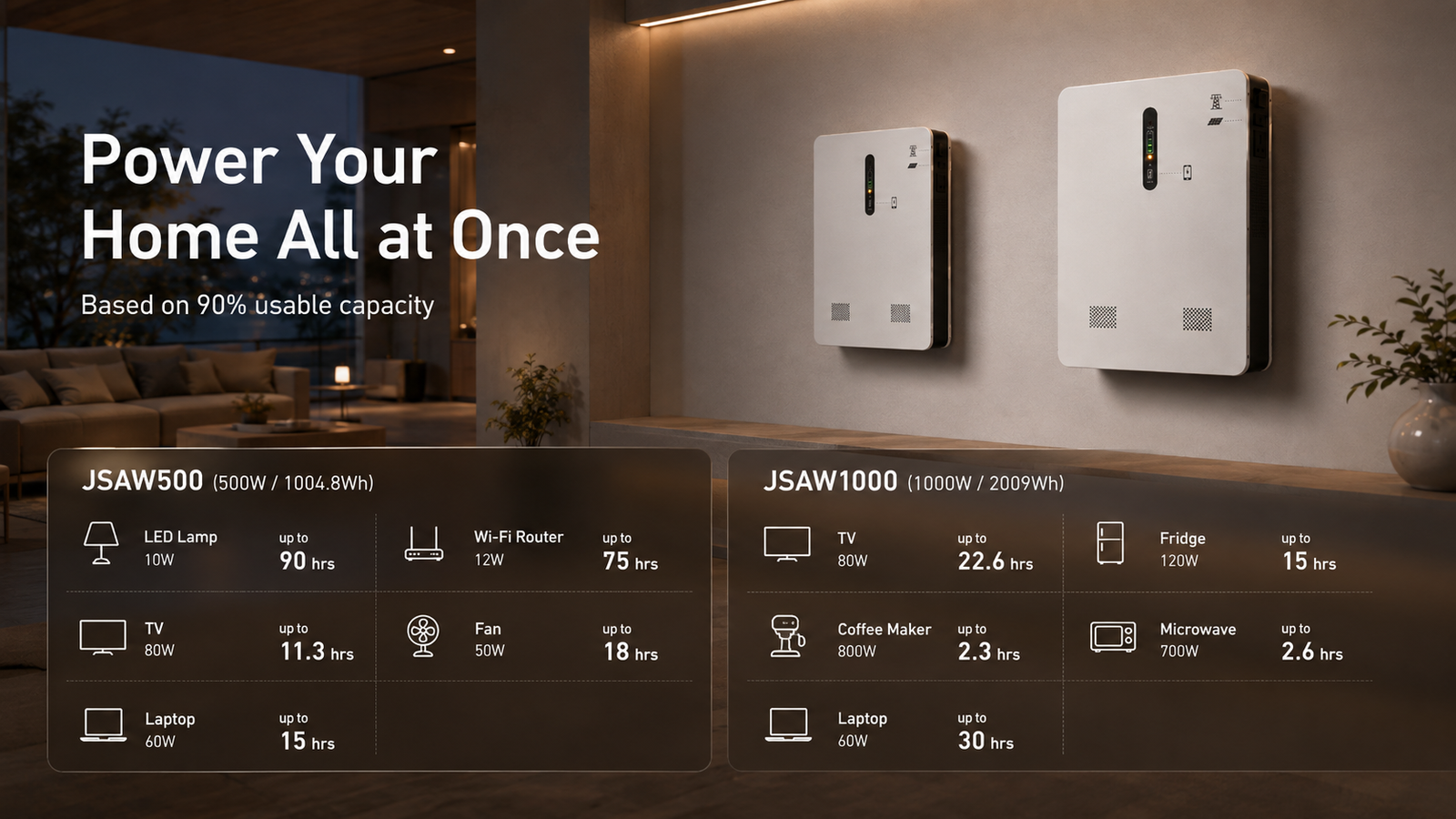

Power Essential Loads During an Outage
Designed for everyday household backup, the system can support lighting, routers, televisions, laptops, fans and other essential appliances. The JSAW1000 offers greater power and energy capacity for longer backup time and higher-load devices.

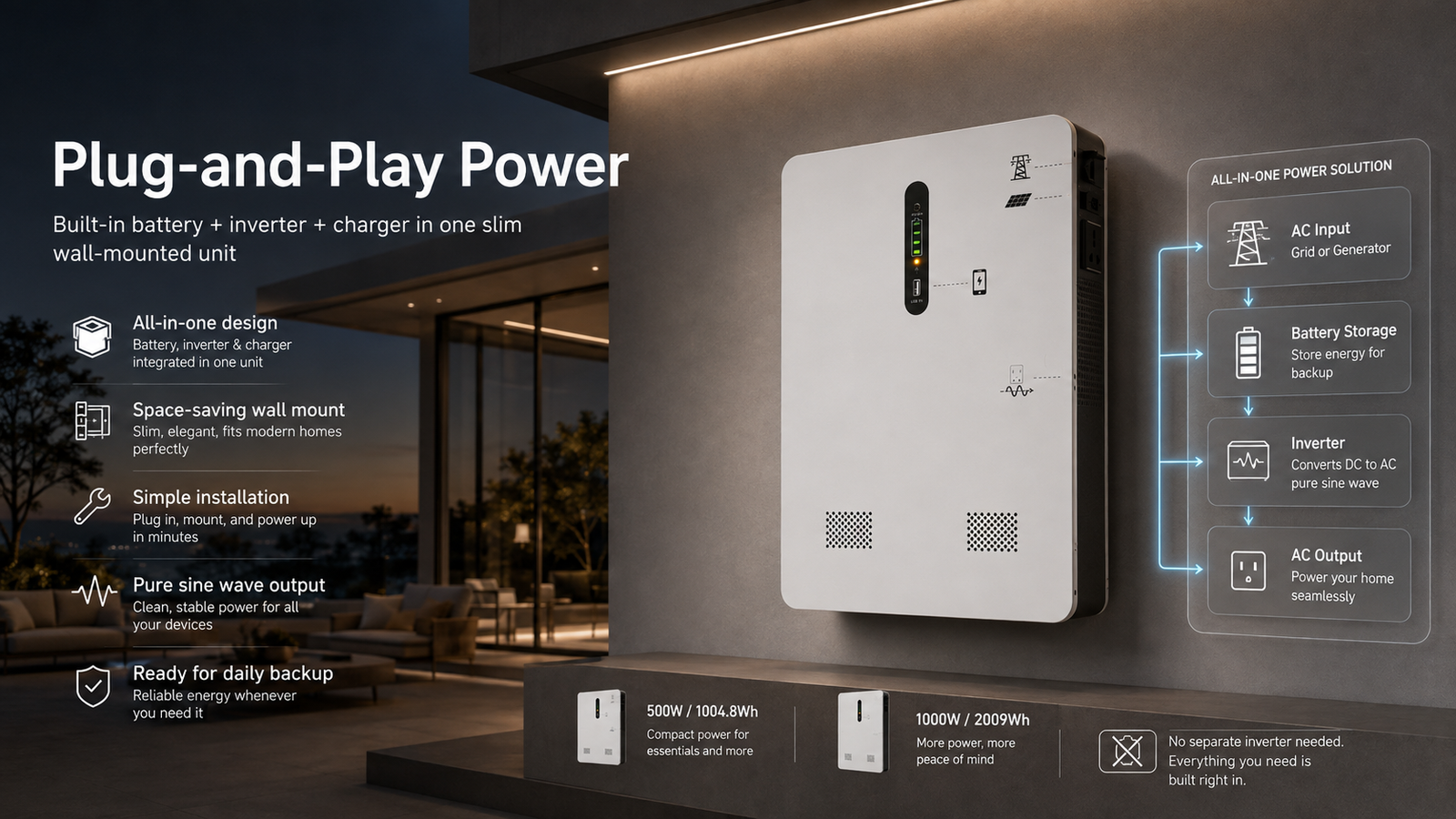

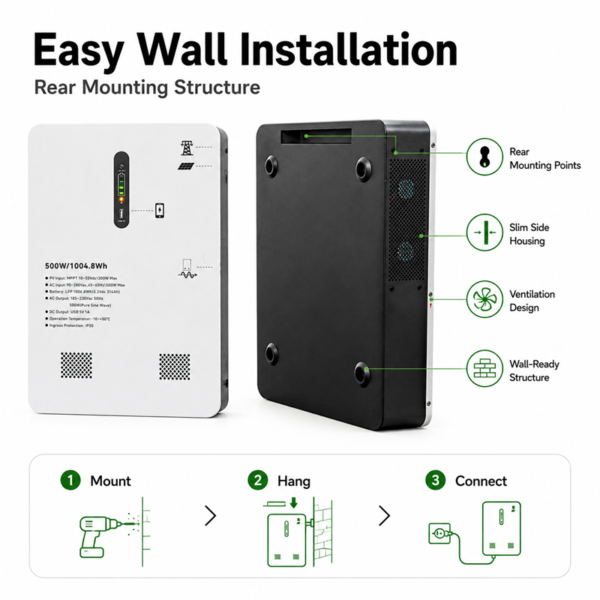

All-in-One Design, Less Installation Work
With the battery, inverter and charging system integrated into a single enclosure, no separate inverter cabinet is required. The 90mm ultra slim wall-mounted all-in-one ESS simplifies installation, reduces wiring and keeps the energy storage system clean and compact.

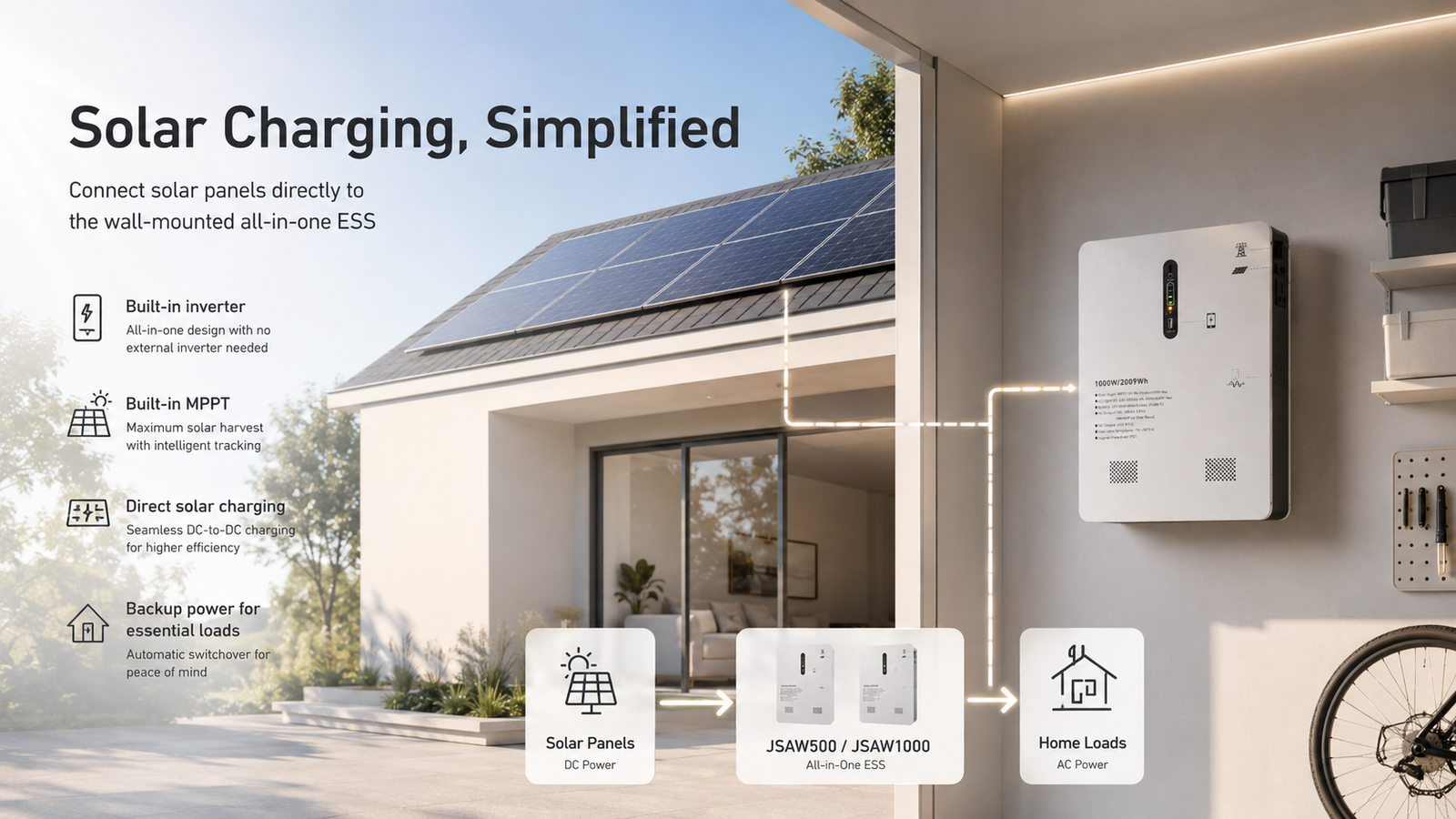

Solar Ready with Built-In MPPT
Connect compatible solar panels directly to the system for efficient solar energy storage. Built-in MPPT technology improves solar energy utilization, allowing daytime solar power to be stored for household use or emergency backup.

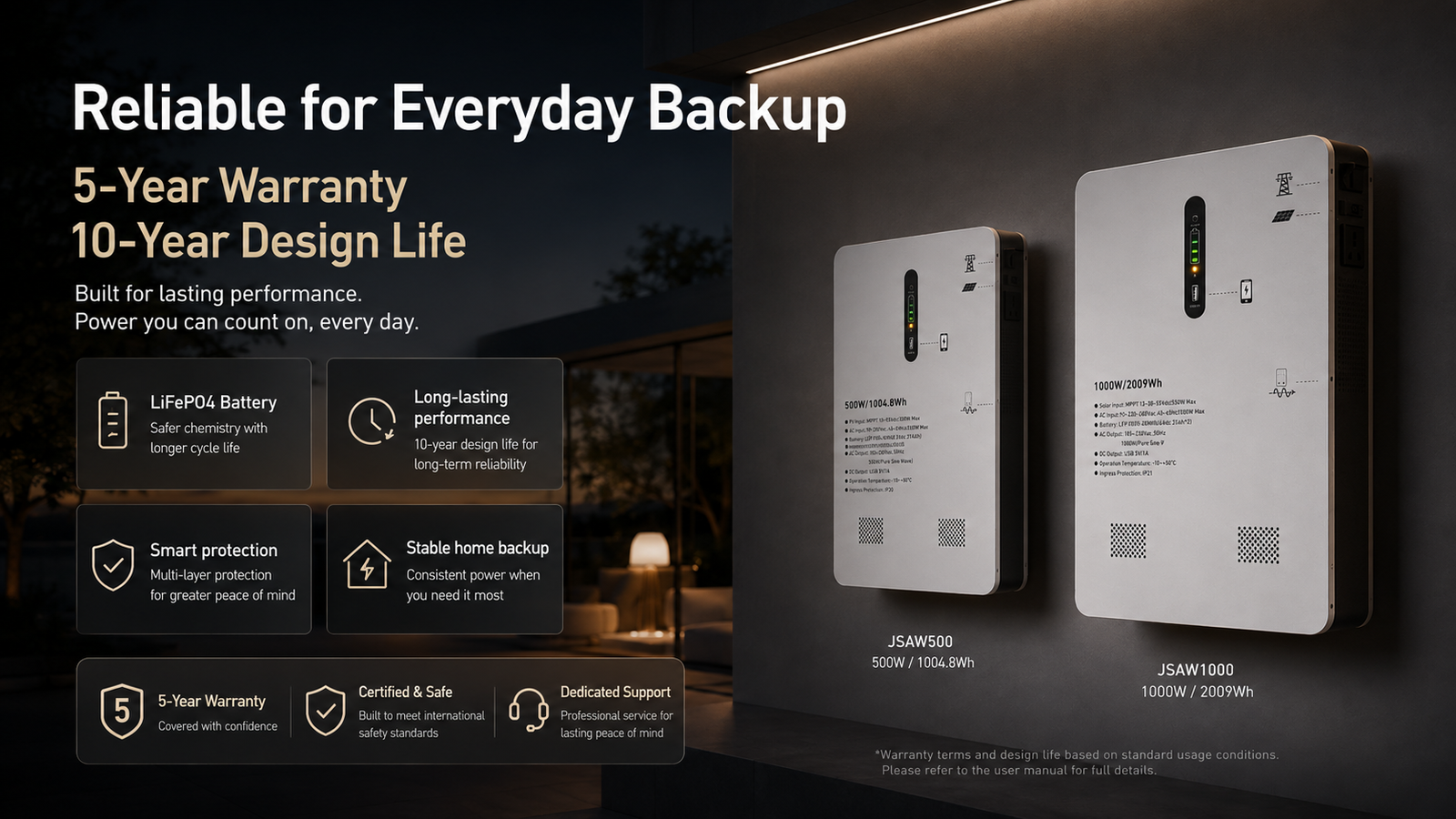

Designed for Long-Term Residential Use
LiFePO₄ battery chemistry, multiple protection functions and stable thermal performance support reliable long-term operation. With a 5-year warranty and 10-year design life, the system is built for dependable residential energy storage applications.
Flexible Supply for B2B Projects
JEEVA supplies the 90mm ultra slim wall-mounted all-in-one ESS as a mature standard product for distributors, installers and residential energy projects. OEM / ODM support is available for branding, packaging, configuration and project-based supply.

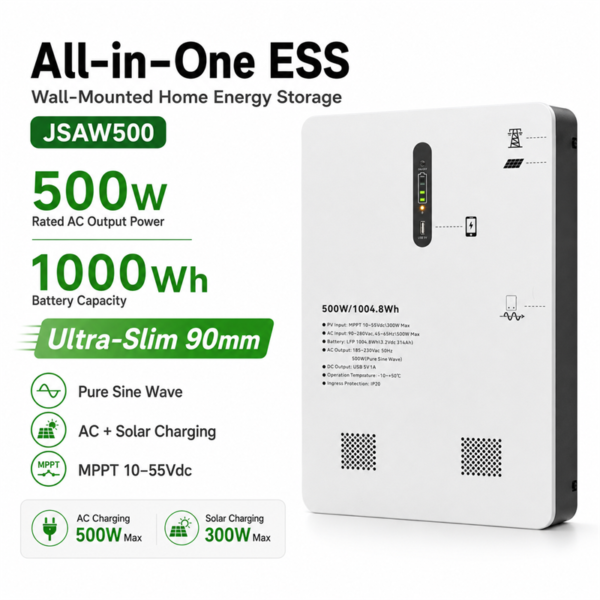

| JSAW500 / JSAW1000 Wall-Mounted All-in-One ESS | ||
|---|---|---|
| Parameter | JSAW500 500W + 1004.8Wh |
JSAW1000 1000W + 2009.6Wh |
| Inverter | ||
| Rated AC Output Power | 500W | 1000W |
| Output Voltage Waveform | Pure Sine Wave | |
| Output Voltage | 185–230VAC, 50Hz | |
| Low DC Warning Point | ≤19% | |
| Low DC Cut-Off Voltage | 2.9VDC | 5.8VDC |
| Low DC Warning Return Voltage | ≥20% | |
| Charging Power (Utility + Solar) | 500W Max. | 800W Max. |
| Bulk Charging Voltage | 3.6VDC | 7.2VDC |
| Float Charging Voltage | 3.5VDC | 7.0VDC |
| AC Input | ||
| Nominal Input Voltage | 230VAC | |
| Low Loss Voltage | 90VAC ±7 | |
| Low Loss Return Voltage | 100VAC ±7 | |
| High Loss Voltage | 280VAC ±7 | |
| High Loss Return Voltage | 270VAC ±7 | |
| Max. AC Input Voltage | 300VAC | |
| Nominal Input Frequency | 45–65Hz | |
| AC Charging Power | 500W Max. | 800W Max. |
| Solar Input | ||
| Nominal PV Voltage | 30VDC | 38VDC |
| PV Array MPPT Voltage Range | 10–55VDC | 13–55VDC |
| Max. PV Open Circuit Voltage | 56VDC | |
| Solar Charging Power | 300W Max. | 550W Max. |
| LiFePO₄ Battery | ||
| Capacity | 1004.8Wh | 2009.6Wh |
| Nominal Battery Voltage | 3.2VDC | 6.4VDC |
| Typical Capacity | 314Ah | |
| Max. Charge Current | 130A | 220A |
| Max. Discharge Current | 130A | 220A |
| Operation Voltage Range | 2.9–3.6VDC | 5.8–7.2VDC |
| Operation Temperature | -10°C–+50°C | |
| DC Output | ||
| DC Output Power | 5W Max. | |
| DC Output Socket | 1 × 5V / 1A USB Charger | |
| General | ||
| LED Indicator | 4 × SOC Indicators, 1 × Working Status Indicator | |
| Protection | Overcharge Protection, Overdischarge Protection, Overcurrent Protection, Short Circuit Protection, Overtemperature Protection |
|
| Noise | <40dB (1 meter) | <50dB (1 meter) |
| Working Temperature | -10°C–+50°C | |
| Humidity | 5%–95% (Non-condensing) | |
| Altitude | ≤2000m | |
| Product Size (L × W × H) | 500 × 180 × 90mm | 500 × 360 × 90mm |
| Package Size (L × W × H) | 580 × 223 × 170mm | 580 × 445 × 170mm |
| Net Weight | 11kg | 18.8kg |
| Gross Weight | 12kg | 19.9kg |
