UAV/Drone/FPV Battery Cell
- Semi-Solid Battery Technology
- Customization Available
- 320Wh/kg+ Ultra-High Energy Density
- Max Continuous Discharge Up To 150C+
- OEM/ODM Available
Ideal Applications
- UAVs · Drones · FPVs
B2B Support
- OEM / ODM Available · Branding Support · Project-Based Supply

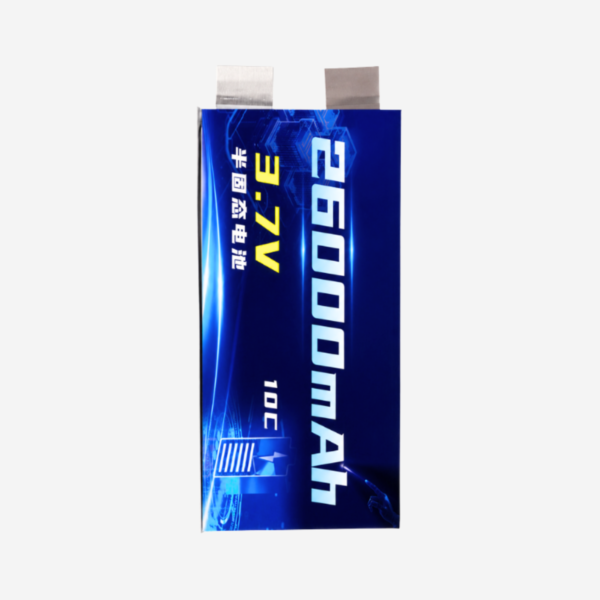

3.7V 26000mAh UAV battery cell
High-Rate Power Built for UAV Performance
The 3.7V 26000mAh UAV battery cell is designed for demanding drone applications where high energy, stable output and reliable discharge performance matter. Its high-capacity cell platform supports professional UAV, drone and FPV power system development.
More Energy. Stronger Output. Less Compromise.
Engineered for applications that require both capacity and discharge performance, this high-rate battery cell delivers a strong balance of energy, weight and power output for demanding flight conditions.
Semi-solid battery technology supports higher energy density while providing a flexible foundation for different UAV battery configurations.
Power for Different Drone Missions
From agricultural UAVs and training drones to FPV and industrial platforms, different aircraft require different power characteristics.
The 3.7V 26000mAh UAV battery cell can be integrated into battery solutions for applications such as crop protection, training, inspection, mapping, long-range flight and other professional drone systems.
Built for Real-World UAV Applications
Reliable drone power is not only about capacity. Voltage stability, discharge capability, pack structure and system compatibility all influence actual flight performance.
Our battery solutions are developed around the requirements of the complete UAV power system, helping customers select suitable cells and pack configurations for their platforms.

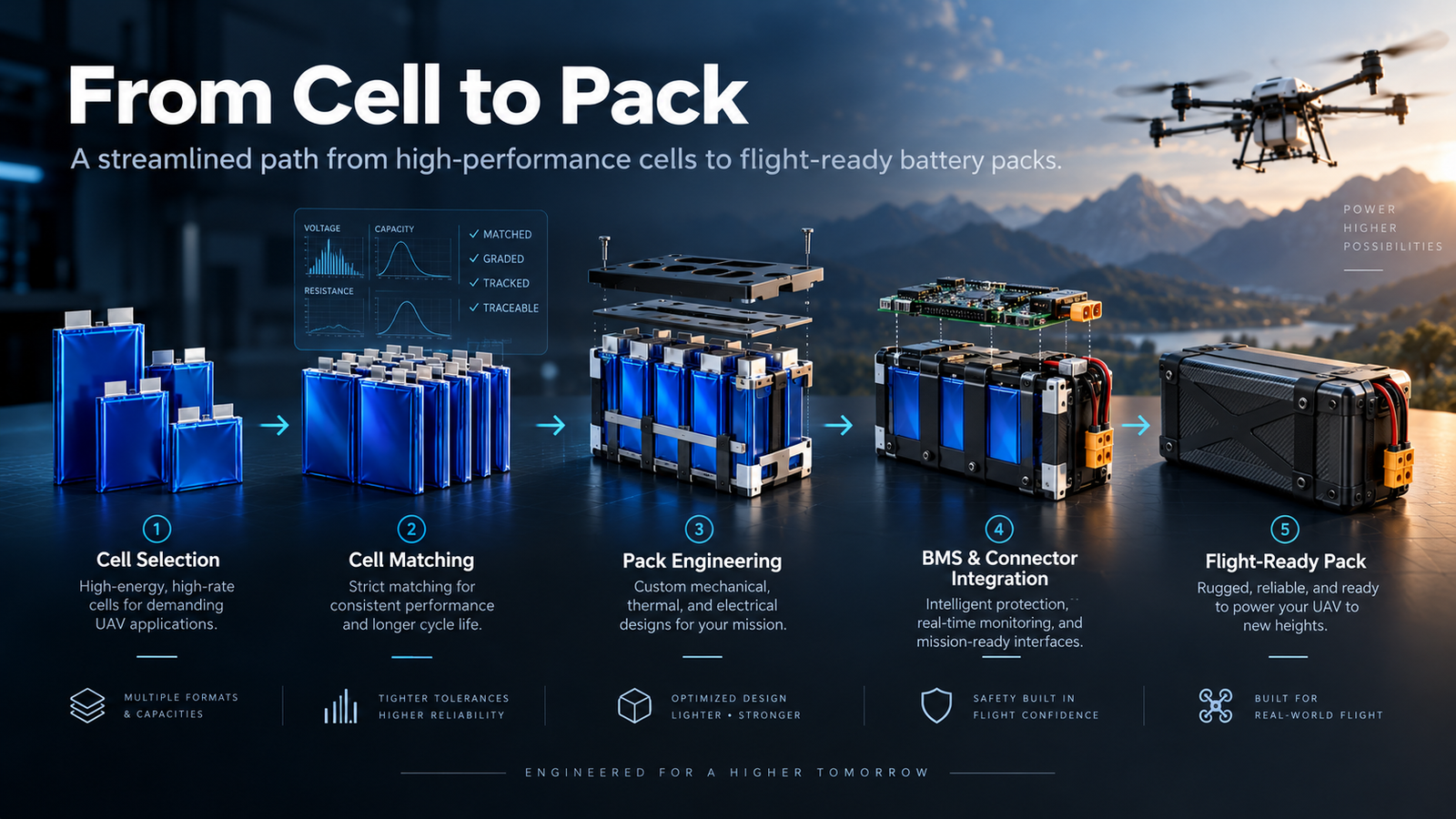

From Cell to Flight-Ready Battery Pack
We support more than individual battery cells. Our cell-to-pack capability covers cell selection, matching, pack structure, BMS integration, connectors and finished battery pack development.
This allows UAV manufacturers and B2B customers to move from a selected battery cell to a complete power solution more efficiently.
Custom Battery Packs for Your UAV Platform
Different drones require different battery solutions. We support customized battery pack development based on your voltage, capacity, discharge rate, dimensions, connector and structural requirements.
OEM & ODM support is available for:
- Voltage & capacity configuration
- Pack dimensions and structure
- Connector and cable configuration
- BMS integration
- Housing and outer wrap
- Label and branding customization
- Prototype to mass production
Need a Battery Solution for Your Drone Project?
Share your UAV specifications, target voltage, capacity, discharge requirements and available installation space. Our team can help evaluate a suitable 3.7V 26000mAh UAV battery cell and customized battery pack solution.
| High-Rate Lithium Battery Cell Specifications | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model No. | Series | Capacity | Nominal Voltage |
Operating Voltage |
Weight | Dimensions (T × W × H) |
Energy Density |
Internal Resistance |
Tab Center Distance |
Charge Rate |
Max Continuous Discharge Rate |
Max Pulse Discharge Rate |
Temperature | Cycle Life |
| HIGH-RATE UAV BATTERY CELL — Crop Protection & Training Drones | ||||||||||||||
| 36520 | 3.65V Series 320Wh/kg |
20000mAh | 3.65V | 4.2–2.75V | 243±10g | ≤8.7 × 75 × 172mm | 320Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
800 cycles |
| 36525 | 3.65V Series 320Wh/kg |
25000mAh | 3.65V | 4.2–2.75V | 299±10g | ≤10.6 × 75 × 172mm | 320Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
800 cycles |
| 36532 | 3.65V Series 320Wh/kg |
32000mAh | 3.65V | 4.2–2.75V | 382±10g | ≤10.5 × 88 × 187mm | 320Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
800 cycles |
| 36535 | 3.65V Series 320Wh/kg |
35000mAh | 3.65V | 4.2–2.75V | 410±10g | ≤11.2 × 88 × 187mm | 320Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
800 cycles |
| 37022 | 3.7V Series 270Wh/kg |
22000mAh | 3.7V | 4.2–2.75V | 297±10g | ≤10.5 × 75 × 172mm | 270Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
1200 cycles |
| 37027 | 3.7V Series 270Wh/kg |
27000mAh | 3.7V | 4.2–2.75V | 363±10g | ≤9.9 × 88 × 187mm | 270Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
1200 cycles |
| 37030 | 3.7V Series 270Wh/kg |
30000mAh | 3.7V | 4.2–2.75V | 404±10g | ≤11 × 88 × 187mm | 270Wh/kg | — | — | 2C | 10C | — | Charge: 0°C–45°C Discharge: -20°C–55°C |
1200 cycles |
| 38020 | 3.8V Series 265Wh/kg |
20000mAh | 3.8V | 4.25–3.0V | 380±10g | ≤10.5 × 88 × 187mm | 265Wh/kg | — | — | 5C | 10C | — | Charge: 0°C–60°C Discharge: 0°C–60°C |
1200 cycles |
| 38030 | 3.8V Series 265Wh/kg |
30000mAh | 3.8V | 4.25–3.0V | 550±10g | ≤10.5 × 106 × 228mm | 265Wh/kg | — | — | 5C | 10C | — | Charge: 0°C–60°C Discharge: 0°C–60°C |
1200 cycles |
| HIGH-RATE FPV BATTERY CELL — Racing, Freestyle & Long-Range Drones | ||||||||||||||
| 456080 | 3.7V Series | 1500mAh | 3.7V | 4.2–2.75V | 40±1.0g | ≤4.7 × 60 × 82mm | — | ≤3mΩ | 30±1.5mm | 5C | 60C | 150C | -20°C–55°C | — |
| 506080 | 3.7V Series | 1800mAh | 3.7V | 4.2–2.75V | 45±1.0g | ≤5.2 × 60 × 82mm | — | ≤3mΩ | 30±1.5mm | 5C | 60C | 120C | -20°C–55°C | — |
| 803496 | 3.7V Series | 2200mAh | 3.7V | 4.2–2.75V | 49±1.0g | ≤8.2 × 34 × 98mm | — | ≤3mΩ | 15±1.5mm | 5C | 50C | 100C | -20°C–55°C | — |
| 853485 | 3.7V Series | 2200mAh | 3.7V | 4.2–2.75V | 49±1.0g | ≤8.7 × 34 × 87mm | — | ≤3mΩ | 15±1.5mm | 5C | 30C | 60C | -20°C–55°C | — |
| 6043125 | 3.7V Series | 2500mAh | 3.7V | 4.2–2.75V | 59±1.0g | ≤6.2 × 43 × 127mm | — | ≤3mΩ | 20±1.5mm | 5C | 60C | 100C | -20°C–55°C | — |
| 1059156 | 3.7V Series | 10000mAh | 3.7V | 4.2–2.75V | — | ≤10.2 × 59 × 158mm | — | ≤2mΩ | 30±1.5mm | 5C | 25C | 50C | -20°C–55°C | — |
| 9070140 | 3.7V Series | 8000mAh | 3.7V | 4.2–2.75V | 188±1.0g | ≤9.0 × 70 × 142mm | — | ≤2mΩ | 33±1.5mm | 2C | 15C | 50C | -40°C–55°C | — |
| 8837110 | 3.85V Series | 5000mAh | 3.85V | 4.35–3.0V | 75±1.0g | ≤9.0 × 37 × 112mm | — | ≤4mΩ | 15±1.5mm | 2C | 10C | 30C | -20°C–55°C | — |
| 7070140 | 3.85V Series | 8000mAh | 3.85V | 4.35–3.0V | 142±1.0g | ≤7.2 × 70 × 142mm | — | ≤2mΩ | 33±1.5mm | 2C | 12C | 45C | -40°C–55°C | — |
| 8070140 | 3.85V Series | 10000mAh | 3.85V | 4.35–3.0V | 163±1.0g | ≤8.0 × 70 × 142mm | — | ≤2mΩ | 33±1.5mm | 2C | 10C | 40C | -40°C–55°C | — |
| 1170140 | 3.85V Series | 12000mAh | 3.85V | 4.35–3.0V | 220±1.0g | ≤11 × 70 × 142mm | — | ≤1.5mΩ | 33±1.5mm | 2C | 10C | 50C | -40°C–55°C | — |
